Tweeter | 2 inch | Midwoofer | 6.5 inch | Diaphragm | Aluminum | Diaphragm | Aluminum | Surround | Rubber | Surround | Rubber | Basket | Die cast | Basket | Die cast | Magnet | Neodymium | Magnet | Ferrite | Impedance | 4 ohm | Impedance | 4 ohm | Sensitivity 1W/1M | 87 dB | Sensitivity 1W/1M | 87 dB | Frequency Response | 200-20k Hz | Frequency Response | '40-5k Hz | Voice Coil | 25.5 mm,Kappton,Copper | Voice Coil | 35.5 mm, Kapton, Copper | Rated Power | 25W | Rated Power | 70 W | Weight | 0.2 kg | Weight | 1.3 kg |

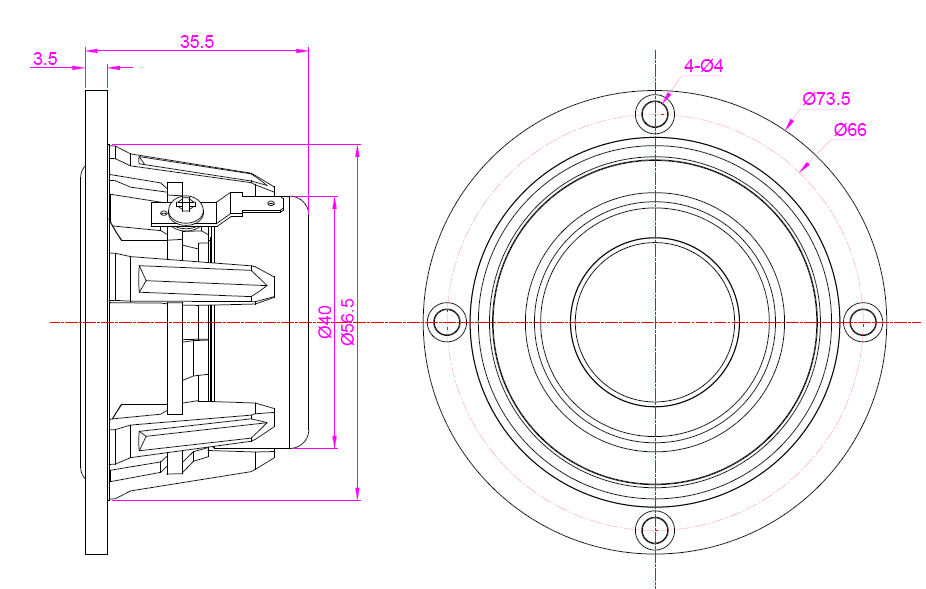

Mechanical 2D Drawing: 1,Tweeter

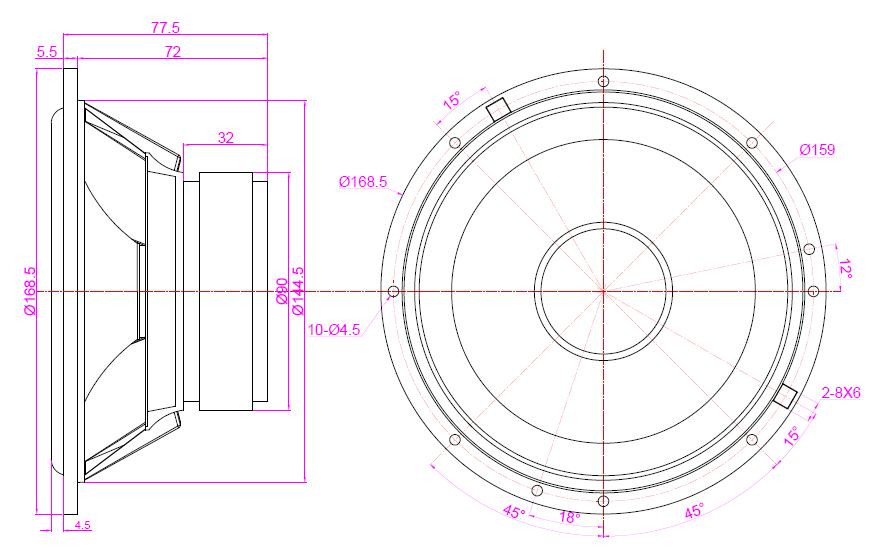

2,Midwoofer

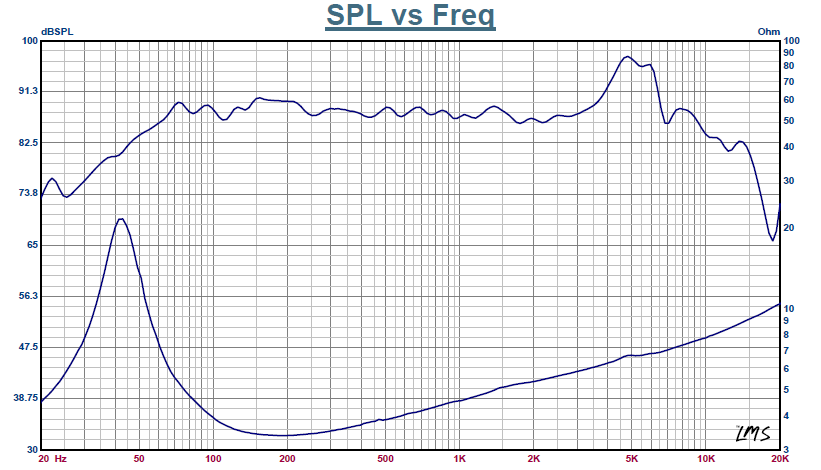

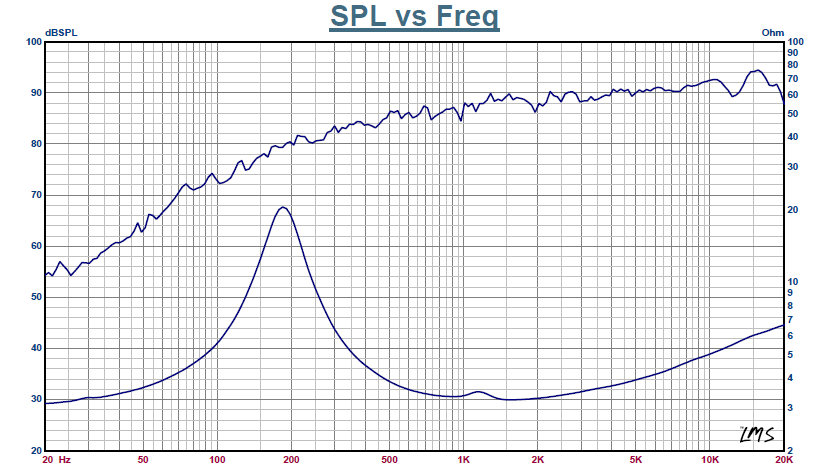

Frequency and Impedance Response: 1,Tweeter
2,Midwoofer
|
