Tweeter | 1 inch | Midwoofer | 6.5 inch | Diaphragm | silk | Diaphragm | paper+mica | Surround | silk | Surround | rubber | Housing | aluminum | Basket | die cast | Magnet | Neodymium | Magnet | ferrite | Impedance | 4 ohm | Impedance | 4 ohm | Sensitivity 1W/1M | 91 dB | Sensitivity 1W/1M | 90 dB | Frequency Response | 1500-25k Hz | Frequency Response | '70-8k Hz | Voice Coil | 25.5 mm,Kapton,CCAW | Voice Coil | 25.9 mm,Kapton,copper | Rated Power | 10 W | Rated Power | 30 W | Weight | 93 g | Weight | 1.2 kg |

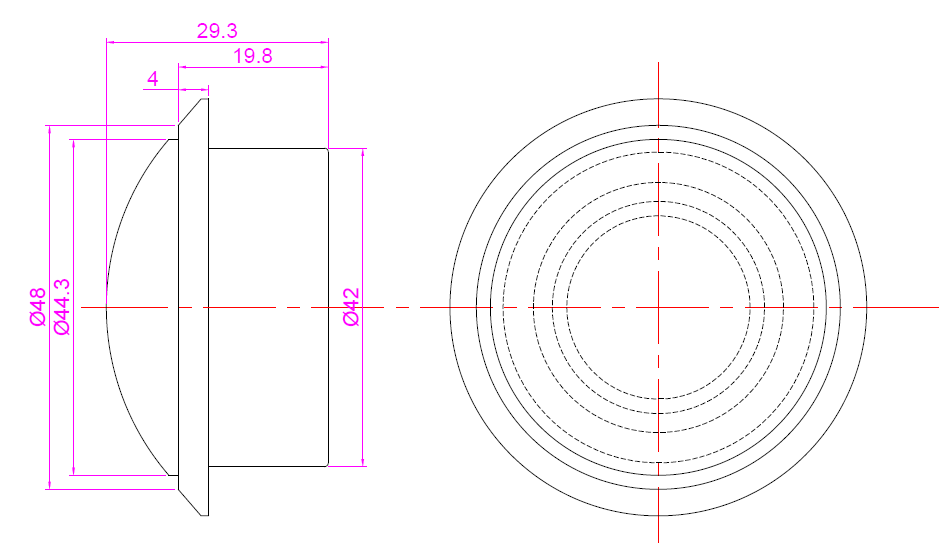

Mechanical 2D Drawing: 1,Tweeter

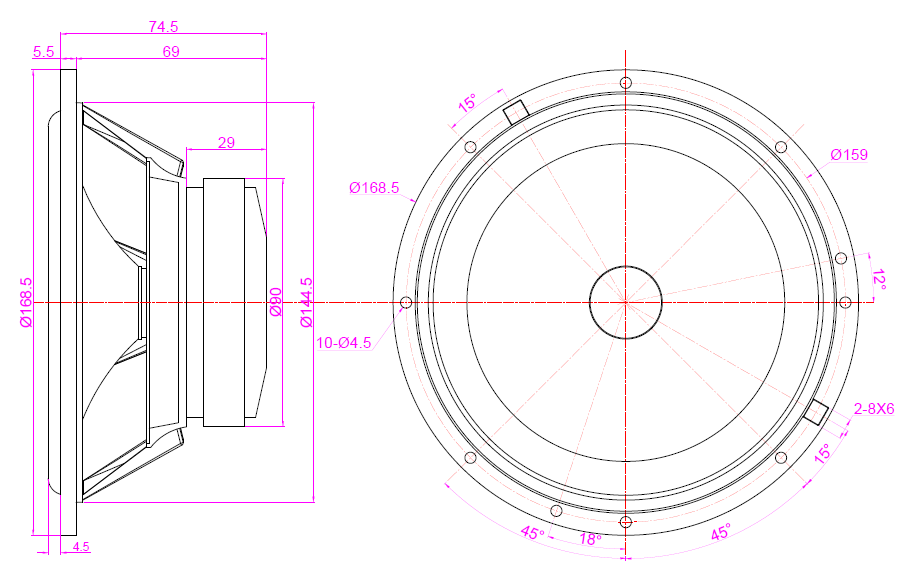

2,Midwoofer

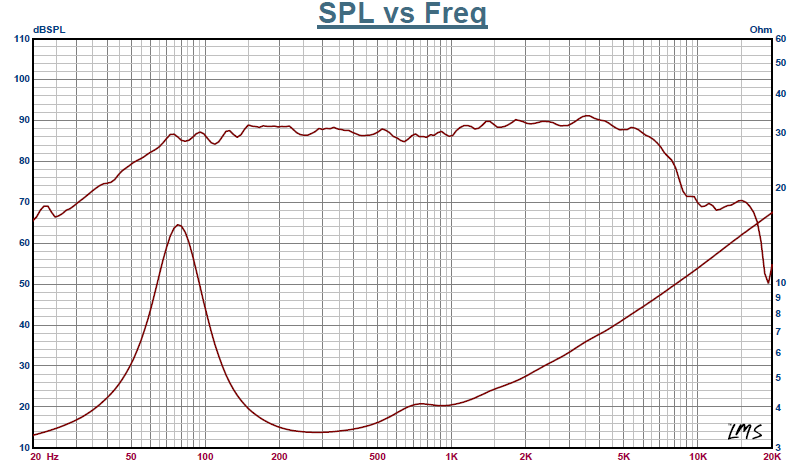

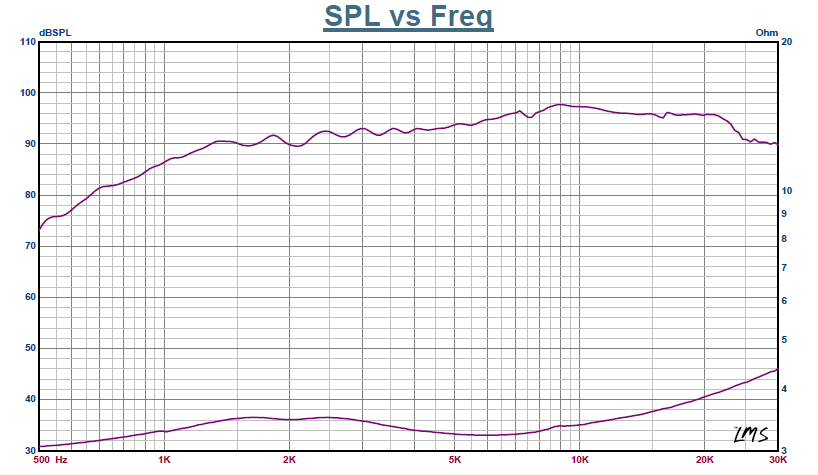

Frequency and Impedance Response: 1,Tweeter  2,Midwoofer
|
