NO.：
 M04P
Name：
 4 inch midwoofer driver
Spec：
Remarks：
Category：
 Midwoofer driver

   Detail

Special Features

  • Die cast frame basket
  • Ferrite motor
  • PP cone with rubber edge & AL dust cap
  • Designed  for high quality multimedia and home theater

System Specification

DiaphragmPPNet.Weight0.85kg
SurroundRubberMoving Mass7.0g
Nominal Impedance8ohmSuspension Compl0.76mm/N
DCR Impedance6.7ohmPiston Diameter83mm
Sensitivity 1W/1M85dBLevc/1KHz1.06mH
Frequency Response70-9kHzX-max+/-6mm
Resonant Frequency71HzVas3.1L
Voice Coil Diameter25.5mmQts0.43
Rated Power Input15WQms3.03
Maximum Power Input30WQes0.5

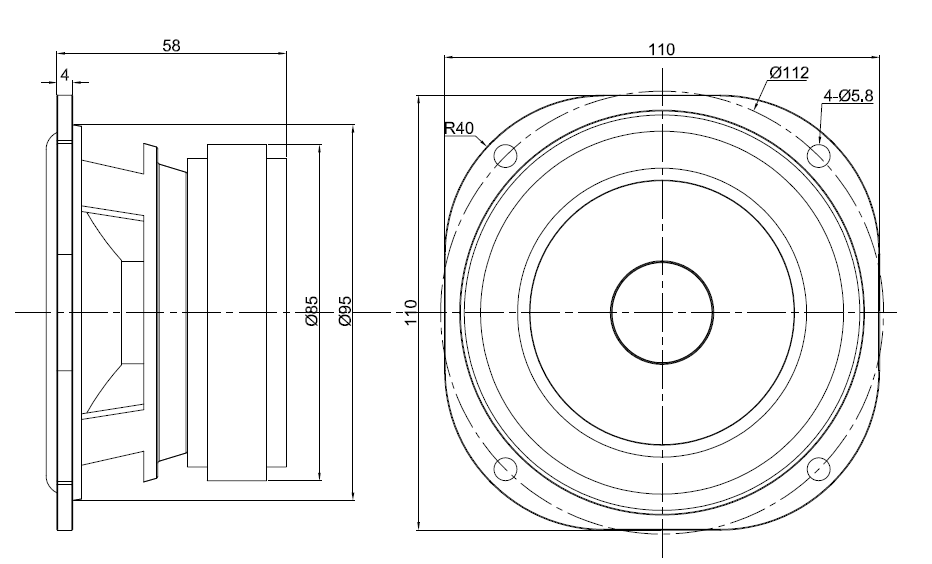

 Mechanical 2D Drawing

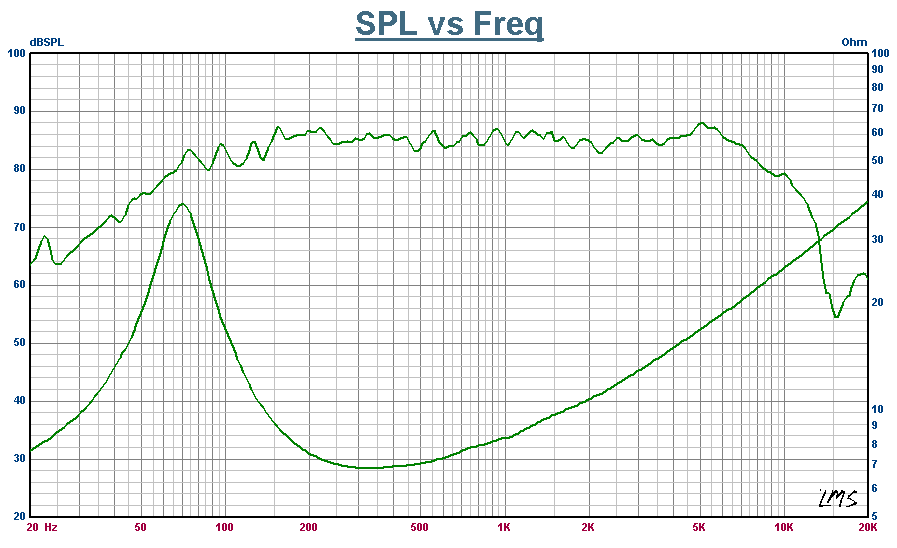

Frequency and Impedance Response
