NO.:
M04T
Name:

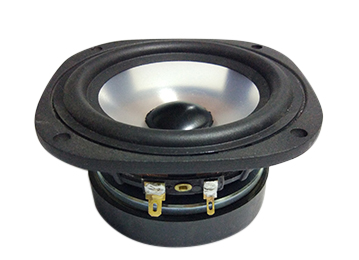

4 inch midwoofer driver
Spec:
Remarks:
Category:
Midwoofer driver

   Detail

Special Features

  • Die cast frame basket
  • Ferrite motor
  • Transparent PP cone with rubber edge & AL dust cap
  • Designed  for high quality multimedia and home theater

System Specification

DiaphragmPPNet.Weight0.85kg
SurroundRubberMoving Mass7.3g
Nominal Impedance8ohmSuspension Compl0.6mm/N
DCR Impedance6.7ohmPiston Diameter83mm
Sensitivity 1W/1M85dBLevc/1KHz1.08mH
Frequency Response70-9kHzX-max+/-6mm
Resonant Frequency76HzVas2.5L
Voice Coil Diameter25.5mmQts0.46
Rated Power Input15WQms3.52
Maximum Power Input30WQes0.54

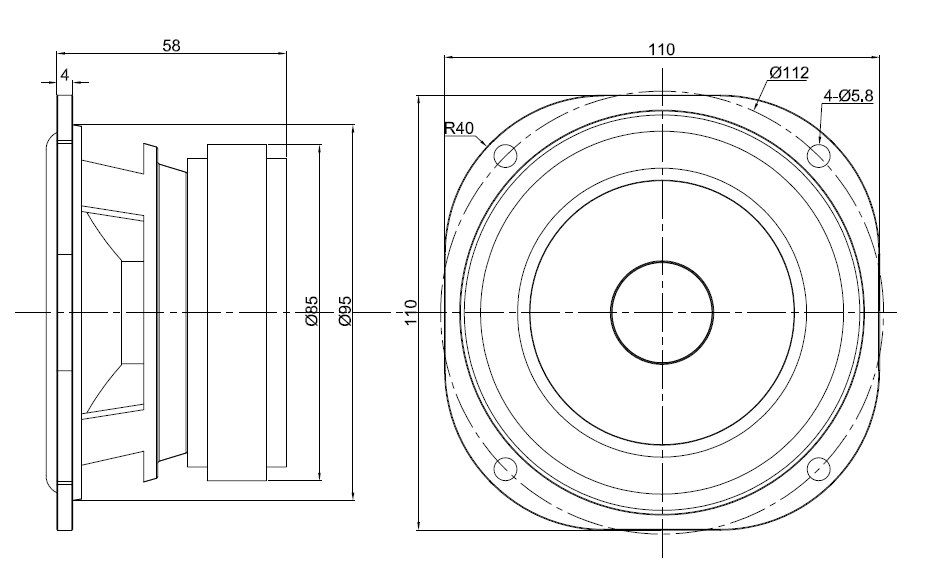

Mechanical 2D Drawing

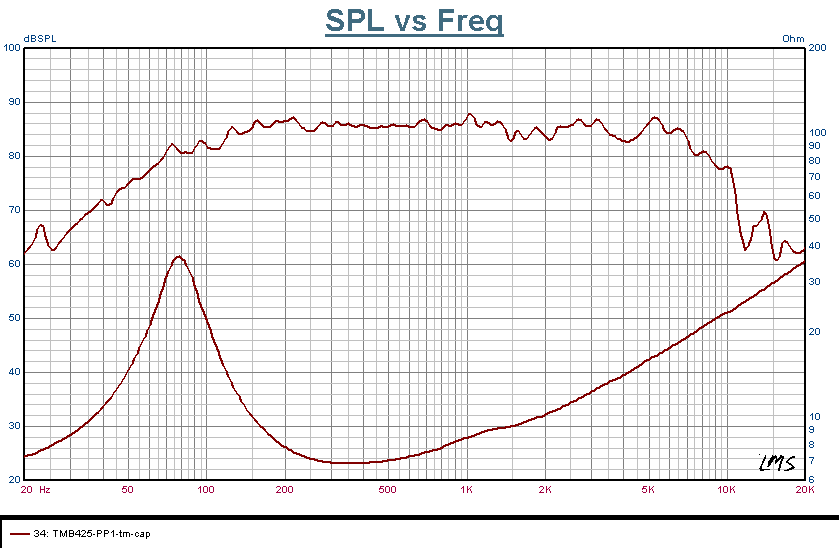

Frequency and Impedance Response
