NO.：

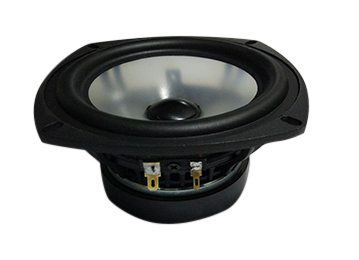

 M05T
Name：
 5 inch midwoofer driverf
Spec：
Remarks：
Category：
 Midwoofer driver

   Detail

Special Features

  • Die cast frame basket
  • Ferrite motor
  • Transparent PP cone with rubber edge & AL dust cap
  • Designed  for high quality multimedia and home theater

System Specification

DiaphragmPPNet.Weight0.95kg
SurroundRubberMoving Mass8.7g
Nominal Impedance8ohmSuspension Compl0.98mm/N
DCR Impedance6.5ohmPiston Diameter104mm
Sensitivity 1W/1M87dBLevc/1KHz1.08mH
Frequency Response50-8kHzX-max+/-6mm
Resonant Frequency55HzVas10L
Voice Coil Diameter25.5mmQts0.43
Rated Power Input20WQms4.59
Maximum Power Input40WQes0.48

Mechanical 2D Drawing

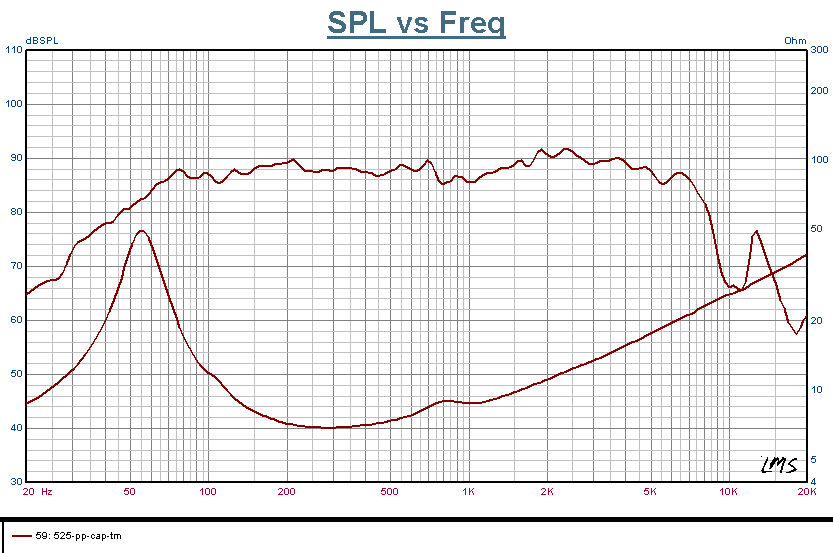

Frequency and Impedance Response
