NO.：
 SW10P
Name：
 10 inch subwoofer driver
Spec：
Remarks：
Category：
 Subwoofer driver

   Detail

Special Features

  • 10'' subwoofer
  • Ferrite motor
  • PP cone with rubber surround
  • Low resonant requency and low distortion
  • Designed  for high quality car

System Specification

DiaphragmPPNet.Weight3.7kg
SurroundRubberMoving Mass117g
Nominal Impedance4ohmSuspension Compl0.19mm/N
DCR Impedance3.7ohmPiston Diameter203mm
Sensitivity 1W/1M86dBLevc/1KHz2.9mH
Frequency Response30-1kHzX-max+/-8mm
Resonant Frequency34HzVas28L
Voice Coil Diameter50mmQts0.37
Rated Power Input100WQms3.26
Maximum Power Input200WQes0.42

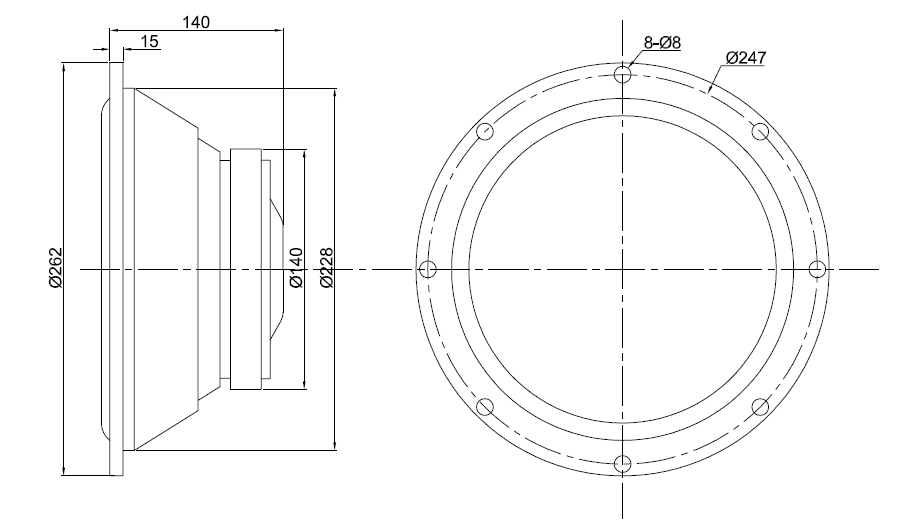

 Mechanical 2D Drawing

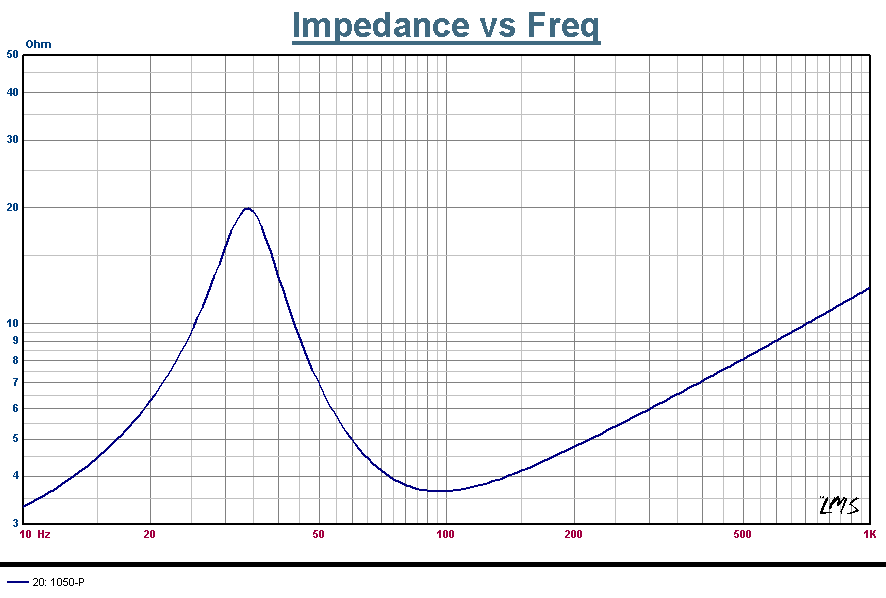

 Frequency and Impedance Response
