NO.：
 SW10N
Name：
 10 inch subwoofer driver
Spec：
Remarks：
Category：
 Subwoofer driver

   Detail

Special Features

  • 10'' subwoofer
  • Ferrite motor
  • Deep PP cone with rubber surround
  • Low resonant requency and low distortion
  • Designed  for high quality car

System Specification

DiaphragmPPNet.Weight3.6kg
SurroundRubberMoving Mass95g
Nominal Impedance4ohmSuspension Compl0.28mm/N
DCR Impedance3.5ohmPiston Diameter205mm
Sensitivity 1W/1M88dBLevc/1KHz2.7mH
Frequency Response30-1kHzX-max+/-8mm
Resonant Frequency31HzVas43.9L
Voice Coil Diameter50mmQts0.3
Rated Power Input100WQms3.03
Maximum Power Input200WQes0.33

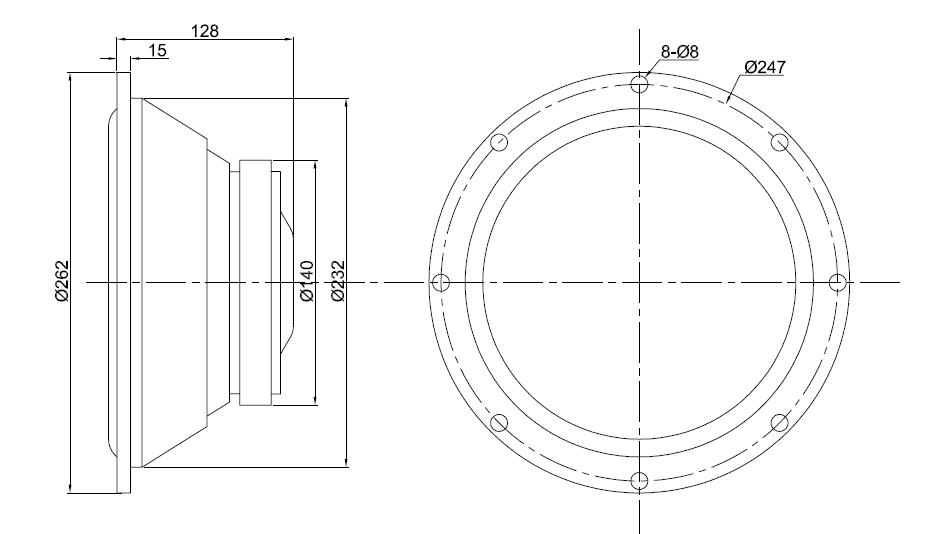

 Mechanical 2D Drawing

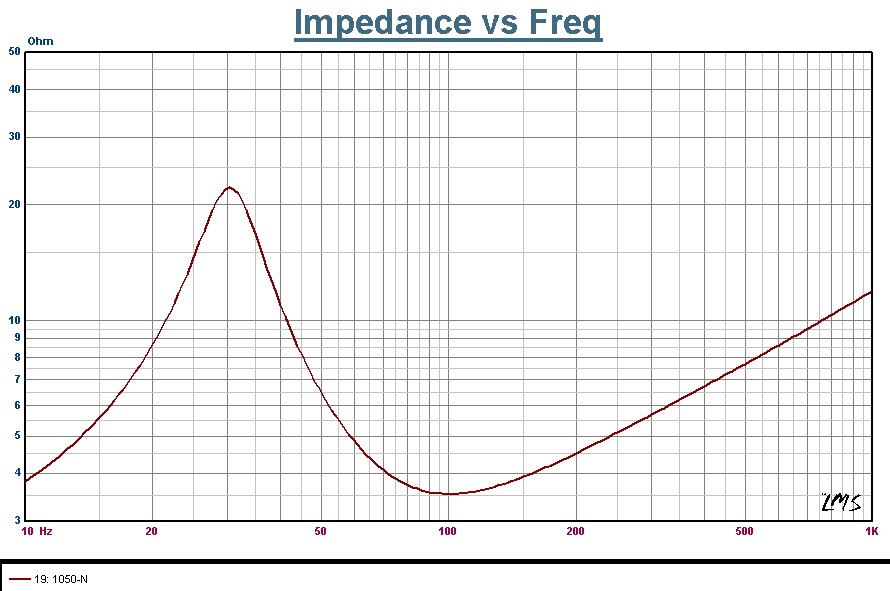

Frequency and Impedance Response
