NO.：
 M05P-8ohm
Name：
 5 inch midwoofer driverf
Spec：
 5 inch
Remarks：
Category：
 Midwoofer driver

   Detail

Special Features

  • Die cast frame basket
  • Ferrite motor
  • PP cone with rubber edge & dust cap
  • Designed  for high quality multimedia

System Specification

DiaphragmPPNet.Weight0.95 kg
SurroundRubberMoving Mass9.52 g
Nominal Impedance8 ohmSuspension Compl1130 um/N
DCR Impedance6.1 ohmPiston Diameter106.0 mm
Sensitivity 1W/1M87.4 dBLevc@ 1KHz1.26mH
Frequency Response40-7K Hz X-max           +/-5mm
Resonant Frequency48 HzVas12.4 L
Voice Coil Diameter25.5 mmQts0.38
Rated Power Input15 WQms7.55
Maximum Power Input30WQes0.4

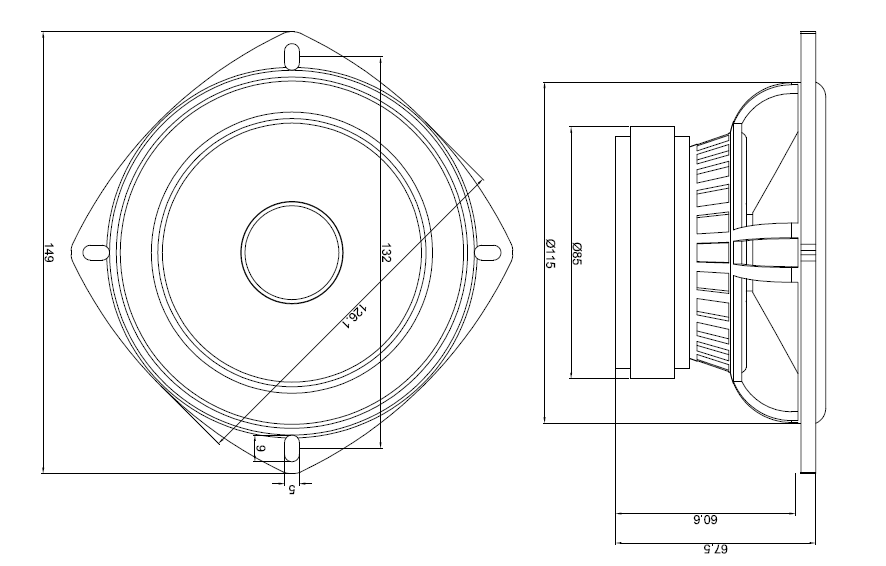

Mechanical 2D Drawing

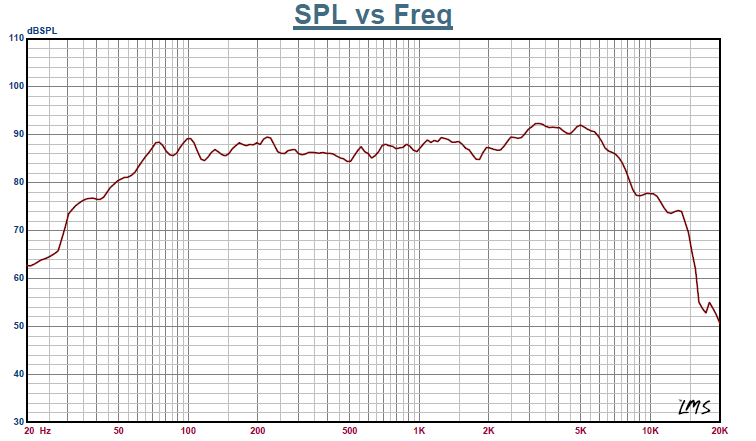

Frequency and Impedance Response
