NO.：
 F02C-4ohm
Name：
 2 inch full range driver
Spec：
 2 inch
Remarks：
Category：
 Full range driver

   Detail

Special Features:

  • Die cast frame basket
  • Neodymium motor
  • Aluminum cone with rubber edge & dust cap
  • Designed  for high quality multimedia

System Specification:

DiaphragmAluminumNet.Weight0.2 kg
SurroundRubberMoving Mass1.60 g
Nominal Impedance4 ohmSuspension Compl1000 um/N
DCR Impedance3.5 ohmEffec Piston Area0.00173 m2
Sensitivity 1W/1M84.5dBLevc@ 1KHz0.69mH
Frequency Response125-20K HzX-max     +/-1.2mm
Resonant Frequency125HzVas0.43 L
Voice Coil Diameter20.4 mmQts0.44
Rated Power Input10 WQms7.12
Maximum Power Input15WQes0.47

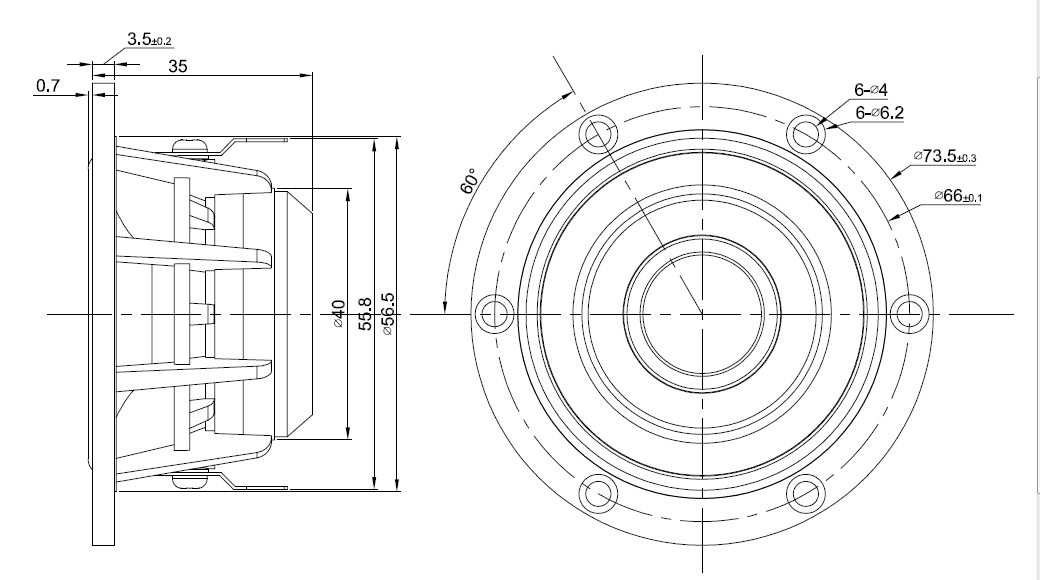

Mechanical 2D Drawing:

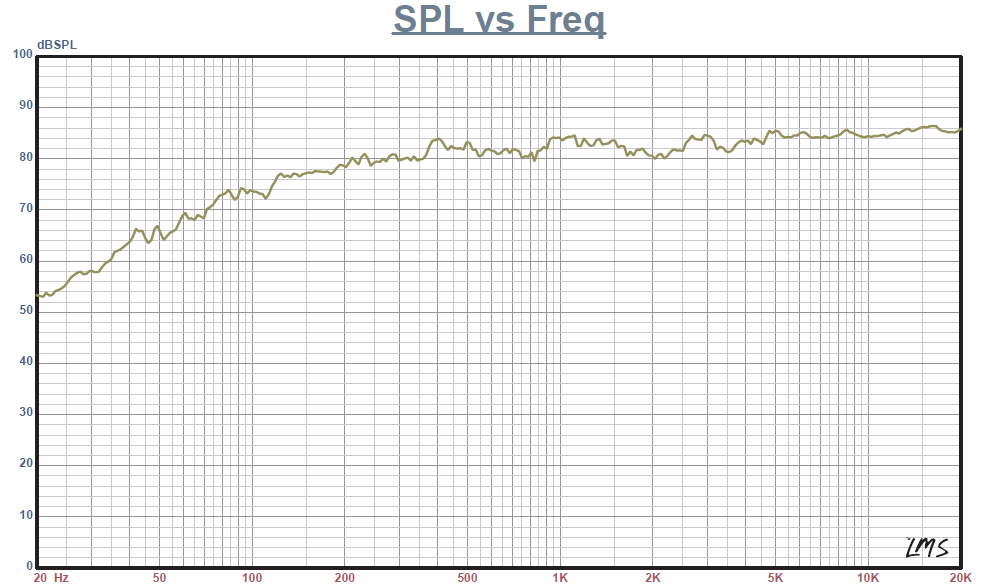

Frequency and Impedance Response:
