NO.：
 F02D-4ohm
Name：

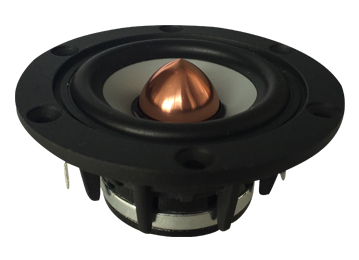

 2 inch full range driver
Spec：
 2 inch
Remarks：
Category：
 Full range driver

   Detail

Special Features:

  • Die cast frame basket
  • Neodymium motor
  • Aluminum cone with rubber edge & phase plug
  • Designed  for high quality multimedia

System Specification:

Diaphragm
Aluminum Net.Weight
0.25kg
Surround
RubberMoving Mass
1.60 g
Nominal Impedance
4 ohmSuspension Compl
1000 um/N
DCR Impedance
3.5 ohmEffec Piston Area
0.00173 m2
Sensitivity 1W/1M
84.5dBLevc@ 1KHz
0.69mH
Frequency Response
125-20K HzX-max
+/-1.2mm
Resonant Frequency
125HzVas
0.43 L
Voice Coil Diameter
20.4 mmQts
0.44
Rated Power Input
10 WQms
7.12
Maximum Power Input
15WQes
0.47

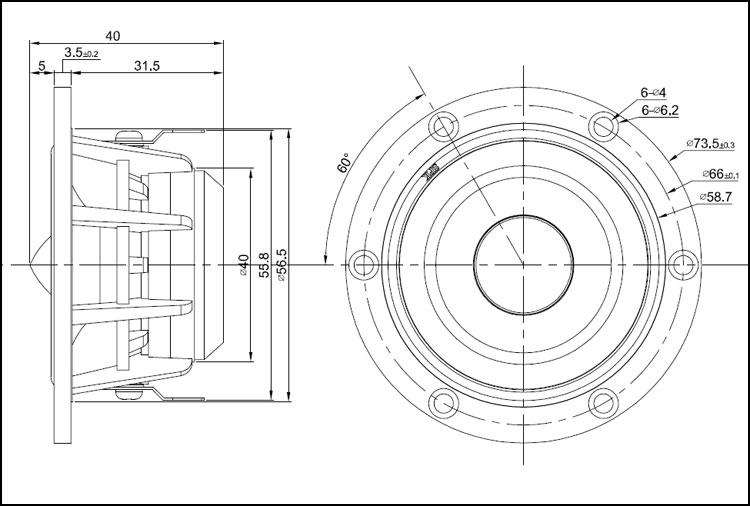

Mechanical 2D Drawing:

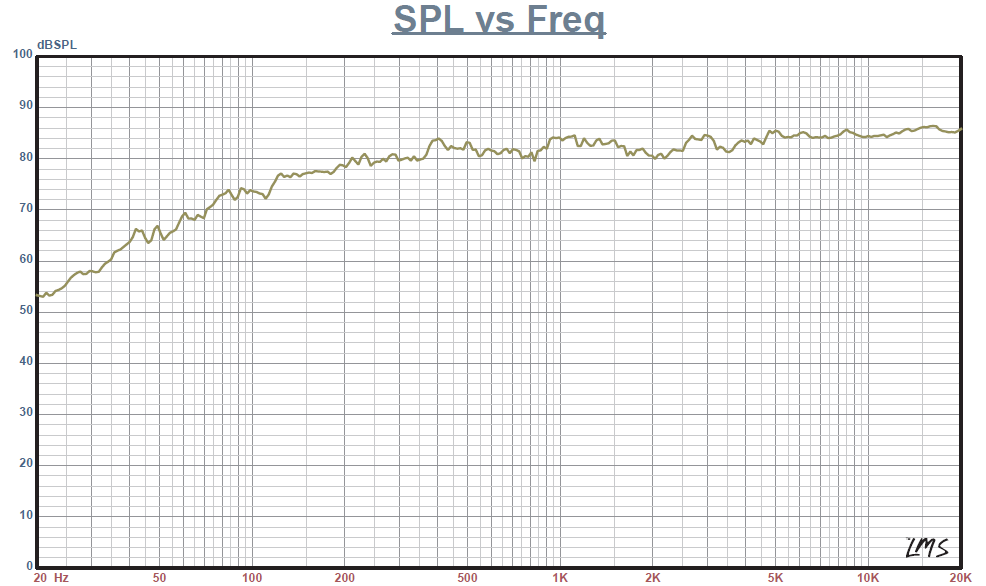

Frequency and Impedance Response:
