NO.：
 F03D-4ohm
Name：
 3 inch full range driver
Spec：
 3 inch
Remarks：
Category：
 Full range driver

   Detail

Special Features:

  • Die cast frame basket
  • Neodymium motor
  • Aluminum cone with rubber edge
  • Designed  for high quality multimedia

System Specification:

DiaphragmAluminumNet.Weight0.4 kg
SurroundRubberMoving Mass2.1 g
Nominal Impedance4 ohmSuspension Compl2.24 mm/N
DCR Impedance3.4 ohmEffec Piston Diameter61.5 mm
Sensitivity 1W/1M84.5 dBLevc@ 1KHz0.66 mH
Frequency Response75-20K HzX-max      +/-3mm
Resonant Frequency75HzVas2.77 L
Voice Coil Diameter20.4 mmQts0.46
Rated Power Input15 WQms2.31
Maximum Power Input20WQes0.57

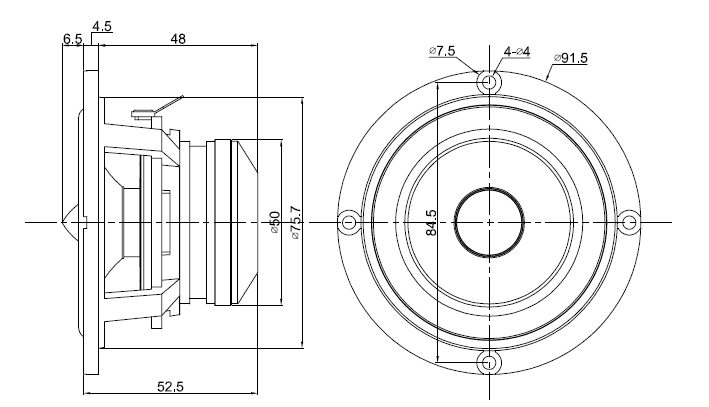

Mechanical 2D Drawing:

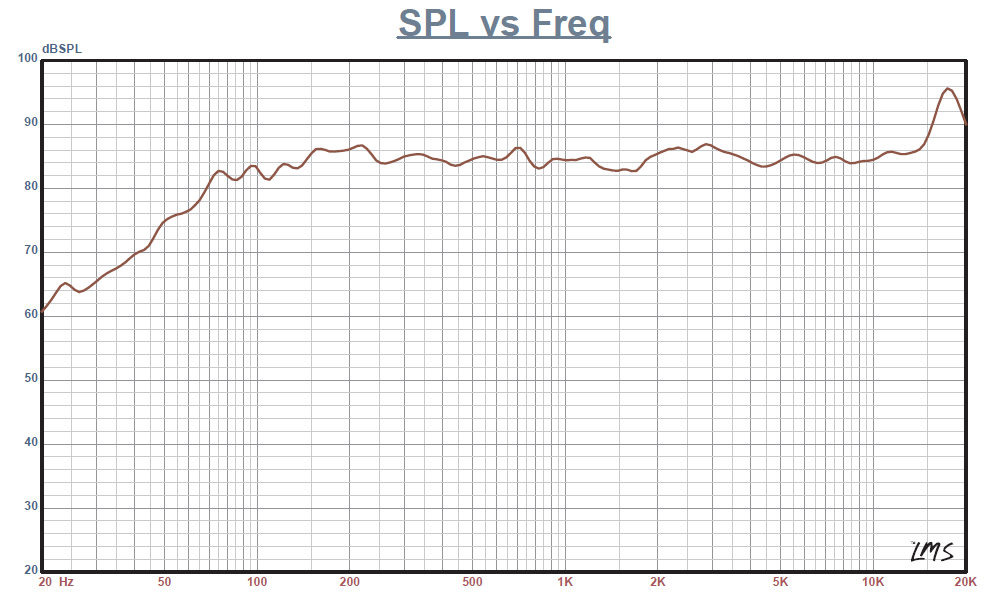

Frequency and Impedance Response:
