NO.：
 M03P-8OHM
Name：
 3 inch subwoofer driver
Spec：
Remarks：
Category：
 Subwoofer driver

   Detail

Special Features:

  • 3'' midwoofer
  • Ferrite motor
  • High power handling
  • Low resonant requency  and low distortion
  • Designed  for high quality multimedia

System Specification:


Diaphragm
PolypropyleneNet.Weight
0.4kg
Surround
RubberMoving Mass
2.87g
Nominal Impedance
8 ohmSuspension Compl
1400 um/N
DCR Impedance
6.8 ohmEffec Piston Area
0.00283m2
Sensitivity 1W/1M
83 dBLevc@ 1KHz
1.3 mH
Frequency Response
80-5K Hz X-max
+/-2.8mm
Resonant Frequency
80HzVas
1.6L
Voice Coil Diameter
20.4 mmQts
0.54
Rated Power Input
12WQms
2.33
Maximum Power Input
18WQes
0.71

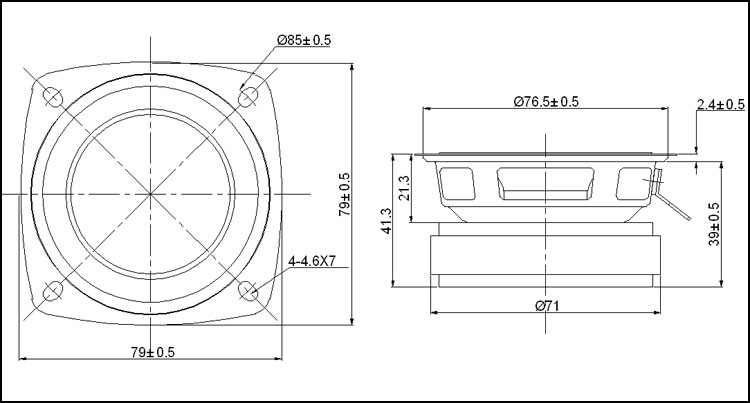

Mechanical 2D Drawing:

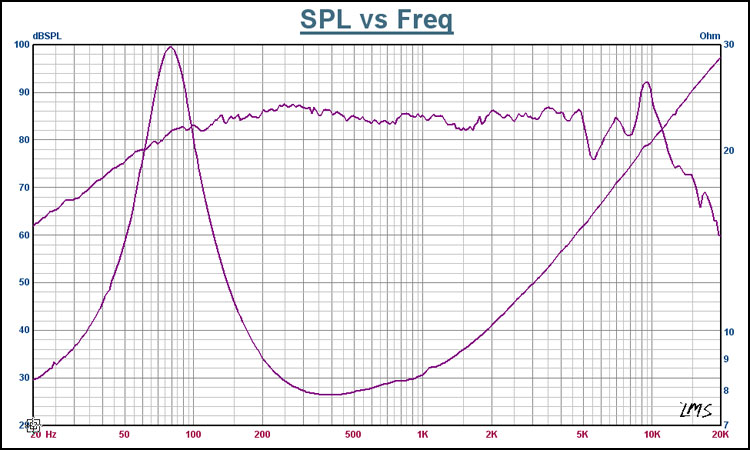

Frequency and Impedance Response:
