NO.：
 M06K-4OHM
Name：
 6.5 inch
Spec：
 6.5 inch
Remarks：
Category：
 Midwoofer driver

   Detail

Special Features:

  • Die cast frame basket
  • Aluminum phase plug design
  • Ferrite motor structure
  • high power handling

System Specification:

DiaphragmKevlarNet.Weight1.4 kg
SurroundRubberMoving Mass13.0 g
Nominal Impedance4 ohmSuspension Compl508 um/N
DCR Impedance3.67 ohmEffec Piston Area0.01307 m2
Sensitivity 1W/1M88 dBLevc@ 1KHz1.03 mH
Frequency Response61-6K HzX-max  +/-6mm
Resonant Frequency61HzVas12.3 L
Voice Coil Diameter25.5 mmQts0.58
Rated Power Input75 WQms3.38
Maximum Power Input150 WQes0.7

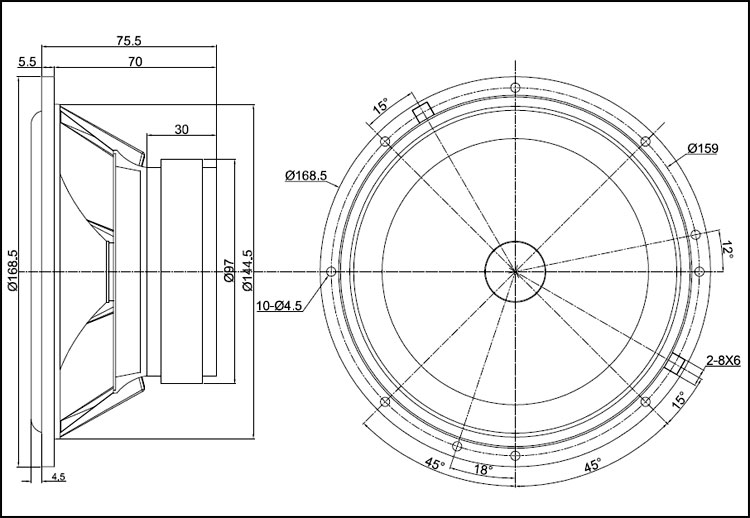

Mechanical 2D Drawing:

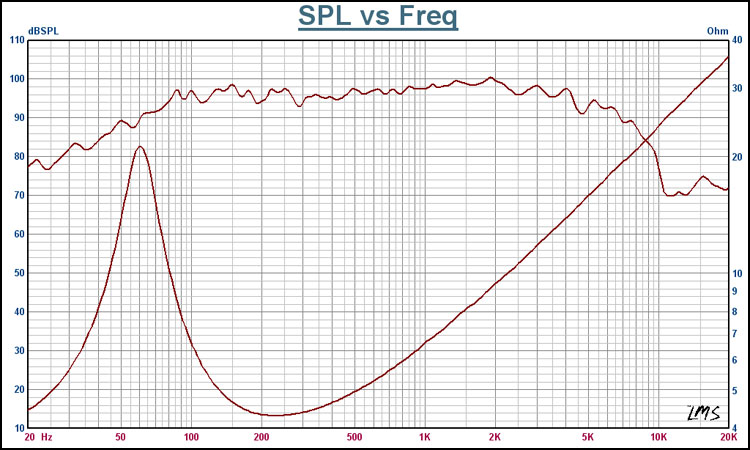

Frequency and Impedance Response:
