NO.：
 M04A-8OHM
Name：

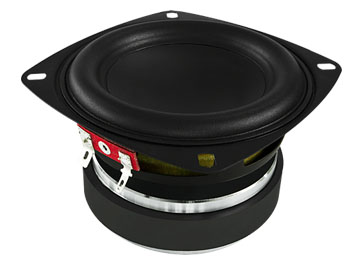

 4 inch subwoofer driver
Spec：
 4 inch
Remarks：
Category：
 Subwoofer driver

   Detail

Special Features:

  • 4'' midwoofer
  • Ferrite motor
  • High power handling
  • Low resonant requency  and low distortion
  • Designed  for high quality multimedia

System Specification:

DiaphragmPaperNet.Weight0.9kg
Surround
RubberMoving Mass
6.56g
Nominal Impedance
8 ohmSuspension Compl
858 um/N
DCR Impedance
6.65 ohmEffec Piston Area
0.00490m2
Sensitivity 1W/1M
85 dBLevc@ 1KHz
1.3 mH
Frequency Response
68-5K Hz X-max
 +/-4mm
Resonant Frequency
68 HzVas
2.93L
Voice Coil Diameter
25.5 mmQts
0.34
Rated Power Input
50WQms
1.65
Maximum Power Input
70WQes
0.43

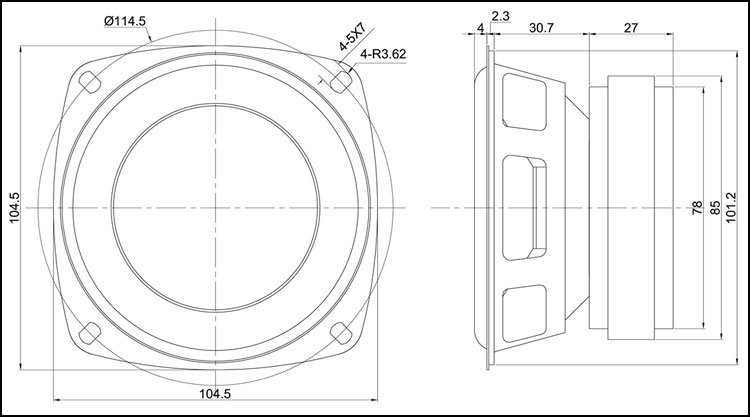

Mechanical 2D Drawing:

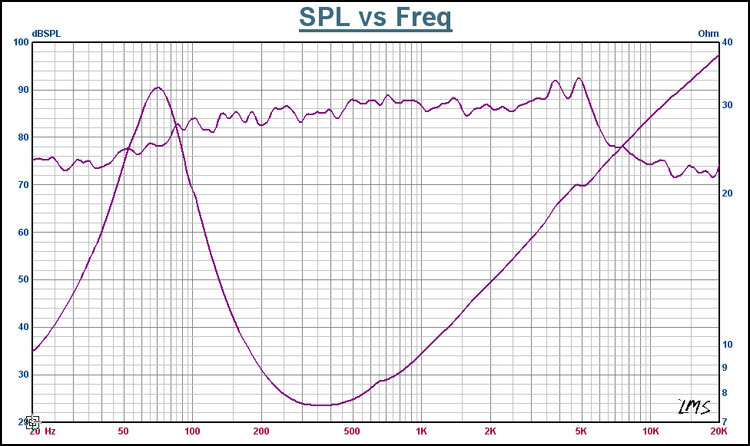

Frequency and Impedance Response:
