NO.:
F03B-6OHM
Name:
3 inch full range driver
Spec:
3 inch
Remarks:
Category:
Full range driver

   Detail

Special Features:

  • Low F0 & high power handling
  • Neodymium motor
  • Long magnet gap design
  • Designed  for high quality multimedia

System Specification:

DiaphragmPolypropyleneNet.Weight0.3 kg
SurroundPolyurethaneMoving Mass2.28 g
Nominal Impedance6 ohmSuspension Compl1290 um/N
DCR Impedance5.2 ohmEffec Piston Area0.00283 m2
Sensitivity 1W/1M84 dBLevc@ 1KHz0.9 mH
Frequency Response94-20K Hz X-max   +/-3mm
Resonant Frequency94HzVas1.42 L
Voice Coil Diameter20.4 mmQts0.63
Rated Power Input15 WQms3.7
Maximum Power Input20WQes0.75

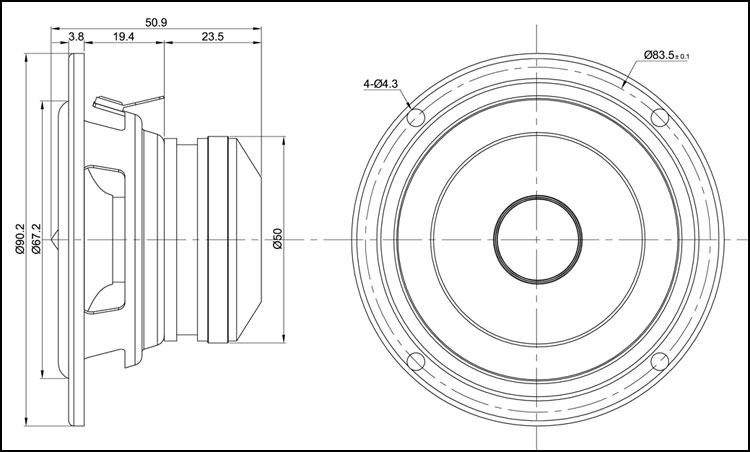

Mechanical 2D Drawing:

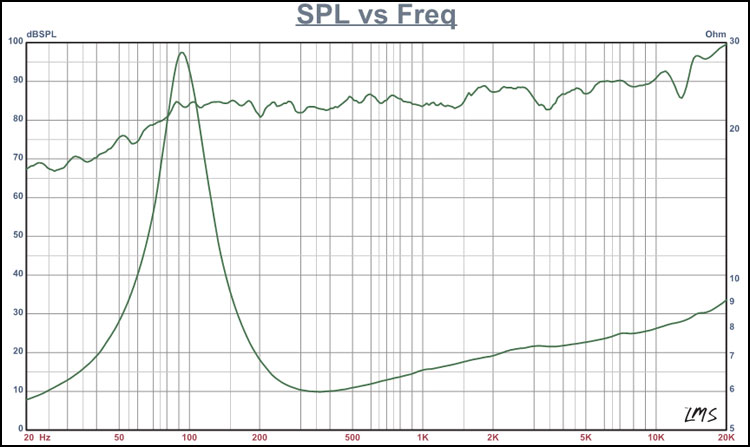

Frequency and Impedance Response:
