NO.：
 F03N-6OHM
Name：
 3 inch full range driver
Spec：
Remarks：
Category：
 Full range driver

   Detail

Special Features:

  • Aluminum bullet design
  • Neodymium motor
  • Long magnet gap design
  • Designed  for high quality multimedia

System Specification:

DiaphragmBlue paperNet.Weight0.3 kg
SurroundPolyurethaneMoving Mass1.85 g
Nominal Impedance6 ohmSuspension Compl1300 um/N
DCR Impedance5.2 ohmEffec Piston Area0.00283 m2
Sensitivity 1W/1M86 dBLevc@1K Hz0.9 mH
Frequency Response103-20K Hz X-max  +/-3mm
Resonant Frequency103HzVas1.48 L
Voice Coil Diameter20.4 mmQts0.57
Rated Power Input15 WQms5.11
Maximum Power Input20WQes0.65

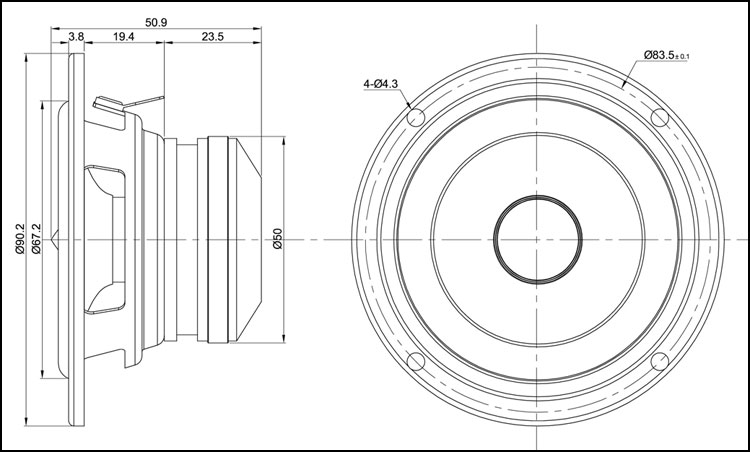

Mechanical 2D Drawing:

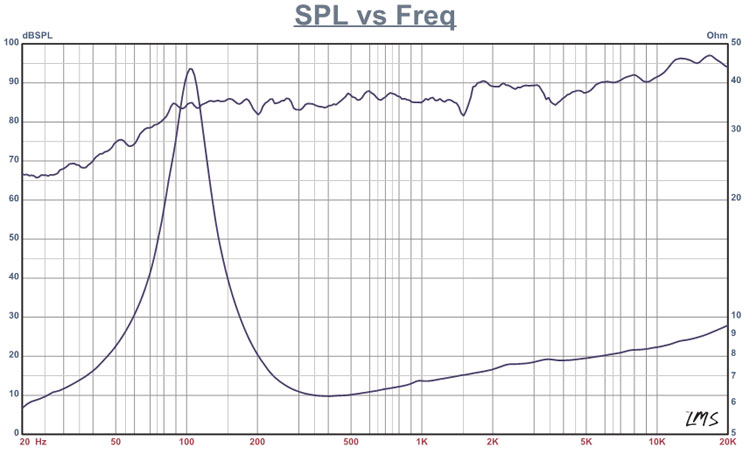

Frequency and Impedance Response:
