NO.：
 F02P-4Ohm
Name：
 2 inch full range driver
Spec：
Remarks：
Category：
 Full range driver

   Detail

Special Features:

  • Die cast frame basket
  • Neodymium motor
  • Polypropylene cone with rubber edge
  • Designed  for high quality multimedia

System Specification:

DiaphragmPolypropyleneNet.Weight0.2kg
SurroundrubberMoving Mass1.98 g
Nominal Impedance4 ohmSuspension Compl1009um/N
DCR Impedance3.86 ohmEffec Piston Area
0.00166 m2
Sensitivity 1W/1M82 dBLevc@ 1KHz
0.8 mH
Frequency Response115-20K Hz X-max
+/-2.5mm
Resonant Frequency115 HzVas
0.40 L
Voice Coil Diameter20.4 mmQts
0.43
Rated Power Input15 WQms
2.2
Maximum Power Input22 WQes
0.51

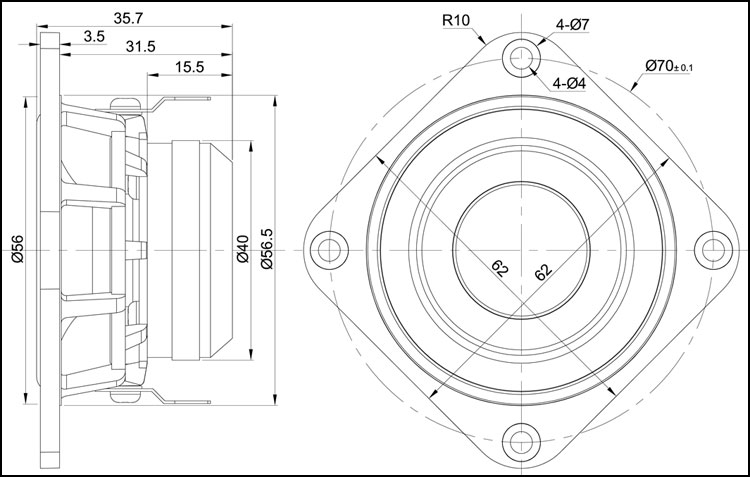

Mechanical 2D Drawing:

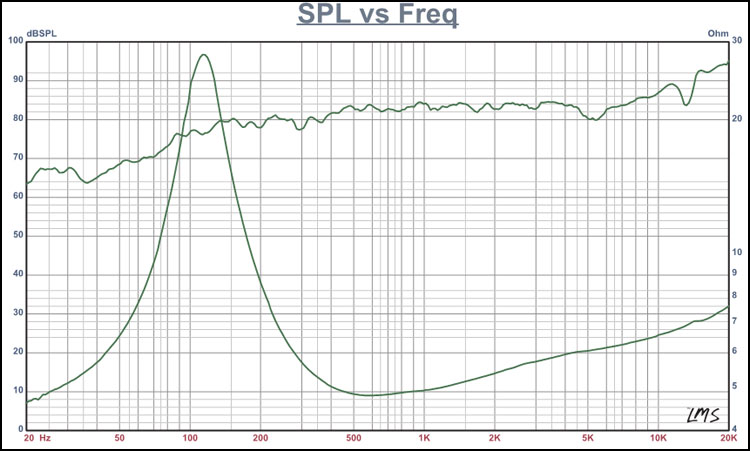

Frequency and Impedance Response:
