NO.：
 F02A-4Ohm
Name：
 2 inch full range driver
Spec：
Remarks：
Category：
 Full range driver

   Detail

Special Features:

  • Die cast frame basket
  • Neodymium motor
  • Aluminum cone with rubber edge
  • Designed  for high quality multimedia

System Specification:

Diaphragm
AluminumNet.WeightNet
0.2 kg
Surround
rubberMoving Mass
2.08 g
Nominal Impedance
4 ohmSuspension Compl
1009 um/N
DCR Impedance
3.86 ohmEffec Piston Area
0.00166 m2
Sensitivity 1W/1M
82 dBLev@1K Hz
0.8 mH
Frequency Response
110-20K Hz X-max
 +/-2.5mm
Resonant Frequency
110 HzVas
0.40 L
Voice Coil Diameter
20.4 mmQts
0.4
Rated Power Input
15 WQms
1.95
Maximum Power Input
22 WQes
0.51

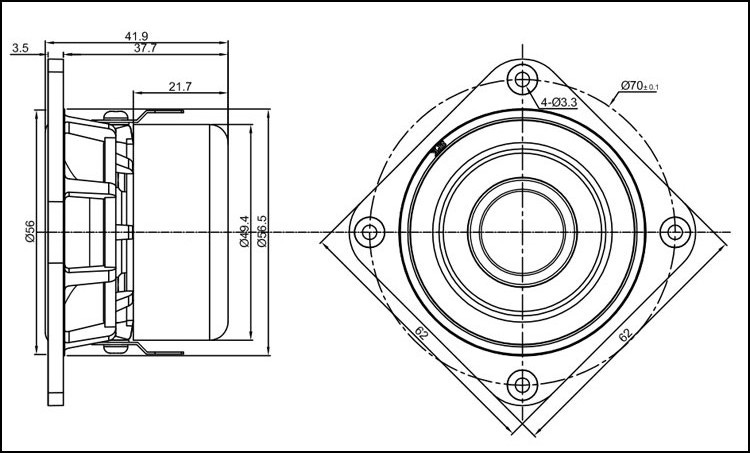

Mechanical 2D Drawing:

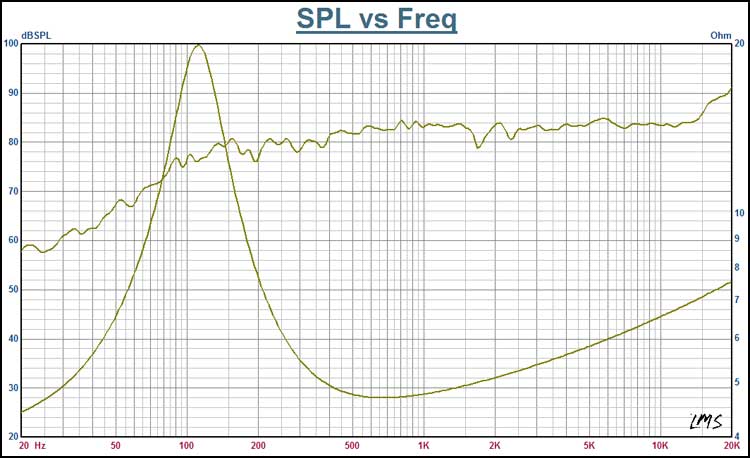

Frequency and Impedance Response:
