NO.：
 F03A-8Ohm
Name：
 3 inch full range driver
Spec：
 3 inch
Remarks：
Category：
 Full range driver

   Detail

Special Features:

  • Cosmetic stamped basket
  • Ferrite motor
  • Paper cone with rubber edge
  • Designed  for high quality multimedia

System Specification:

DiaphragmPaperNet.Weight0.4 kg
SurroundrubberMoving Mass1.30 g
Nominal Impedance8 ohmSuspension Compl1356 um/N
DCR Impedance6.85 ohmEffec Piston Area0.00283 m2
Sensitivity 1W/1M88 dBLevc@1K Hz1.3 mH
Frequency Response120-20K Hz X-max +/-2.6mm
Resonant Frequency120 HzVas1.54 L
Voice Coil Diameter20.4 mmQts0.57
Rated Power Input15 WQms5.5
Maximum Power Input20WQes0.64

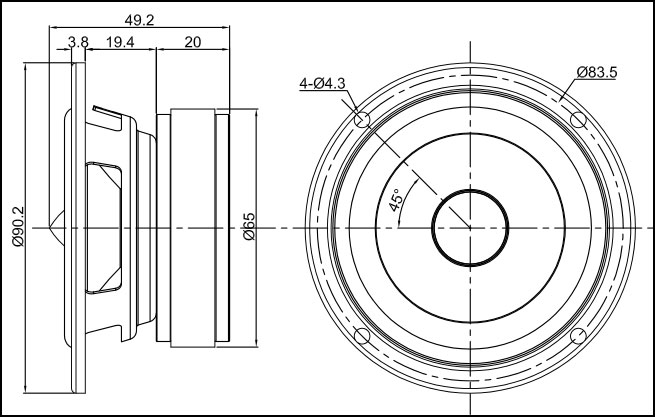

Mechanical 2D Drawing:

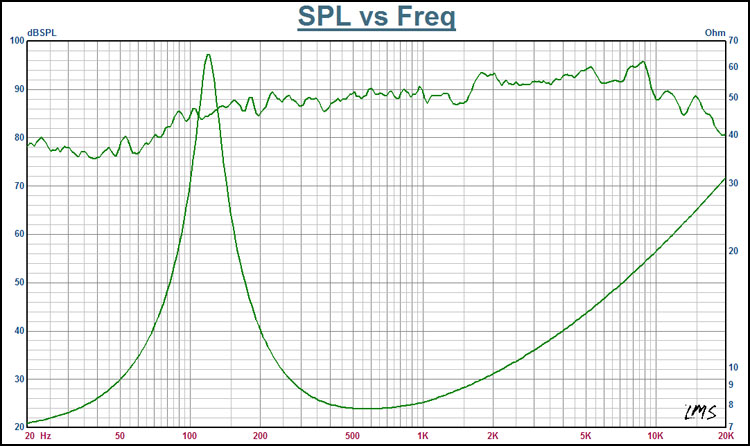

Frequency and Impedance Response:
