NO.：
 F03P-8Ohm
Name：
 3 inch full range driver
Spec：
 3 inch
Remarks：
Category：
 Full range driver

   Detail

Special Features:

  • Cosmetic stamped basket
  • Ferrite motor
  • Polypropylene cone with rubber edge
  • Designed  for high quality multimedia

System Specification:

DiaphragmPolypropyleneNet.Weight0.4 kg
SurroundrubberMoving Mass1.97 g
Nominal Impedance8 ohmSuspension Compl1461 um/N
DCR Impedance6.85 ohmEffec Piston Area0.00283 m2
Sensitivity 1W/1M85 dBLevc@ 1KHz1.3 mH
Frequency Response95-20K Hz X-max+/-2.6mm
Resonant Frequency95 HzVas1.66 L
Voice Coil Diameter20.4 mmQts0.58
Rated Power Input15 WQms3.28
Maximum Power Input20WQes0.7

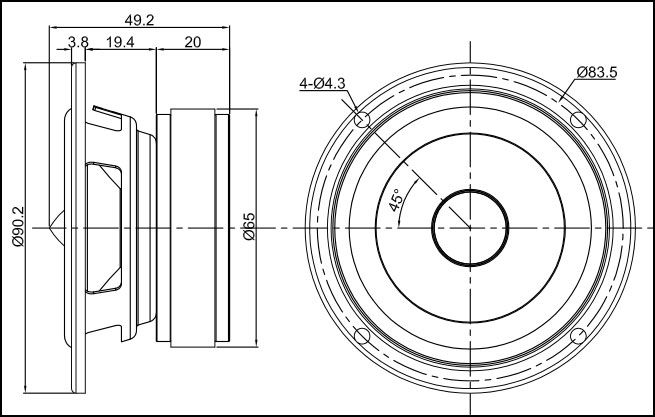

Mechanical 2D Drawing:

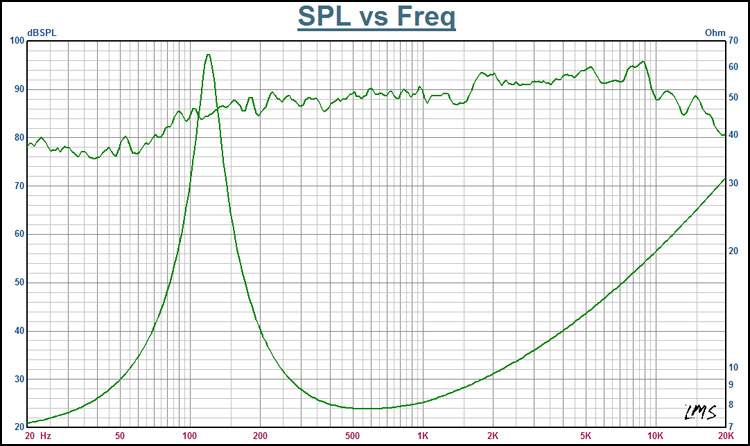

Frequency and Impedance Response:
